2012 V Strom Specs
Suzuki DL 650 V-Strom
| Make Model | Suzuki DL 650 V-Strom / ABS |
| Year | 2012-13 |
| Engine | Four stroke, 90�-V-twin, DOHC, 4 valves per cylinder. |
| Capacity | 645 cc / 39.4 cu-in |
| Bore x Stroke | 81 x 62.6 mm |
| Compression Ratio | 11.2:1 |
| Co oling System | Liquid cooled |
| Oil Capacity | 3.0 L (3.2 / 2.6 US / Imp qt) |
| Lubrication | Wet sump |
| Induction | Fuel Injection |
| Ignition | Electronic Ignition |
| Starting | Electric |
| Max Power | 49 kW / 66.6 hp @ 8800 rpm |
| Max Torque | 60 Nm / 6.12 kgf-m / 44.3 lb-ft @ 6400 rpm |
| Clutch | Wet, multiple discs, cable operated |
| Transmission | 6 Speed |
| Final Drive | Chain |
| Frame | Aluminium, twin spar |
| Primary Reduction Ratio | 2.088 (71 / 34) |
| Final Reduction Ratio | 3.133 (47 / 15) |
| Front Suspension | Telescopic, coil spring, oil damped |
| Rear Suspension | Link type, coil spring, oil damped |
| Front Brakes | 2 x 310 mm disc, 2 piston calipers, ABS |
| Rear Brakes | Single 260 mm disc, 1 piston caliper, ABS |
| Front Tyre | 110/80R19M/C 59H |
| Rear Tyre | 150/70R17M/C 69H |
| Rake | 26� |
| Trail | 110 mm / 4.3 in |
| Dimensions | Length 2290 mm / 90.2 in Width 835 mm / 32.9 in Height 1405mm / 55.3 in |
| Wheelbase | 1560 mm / 61.4 in |
| Seat Height | 835 mm / 32.9 in |
| Ground Clearance | 175 mm / 6.9 in |
| Wet Weight | 214 kg / 472 lbs |
| Fuel Capacity | 20 Litres / 5.2 US gal / 4.4 Imp gal / |
The spirit of adventure beckons you to new destinations. To new sights, sounds and sensations. The V-Strom 650 ABS is built to get you there with more enjoyment and excitement, in greater comfort. Performance. Handling. Styling. Redesigned throughout. Upgraded throughout. The V-Strom 650 ABS. Time for real adventures. Features Compact, slim styling featuring a vivid combination of expressive painted sections and functional black resin components accentuates the sporty profile

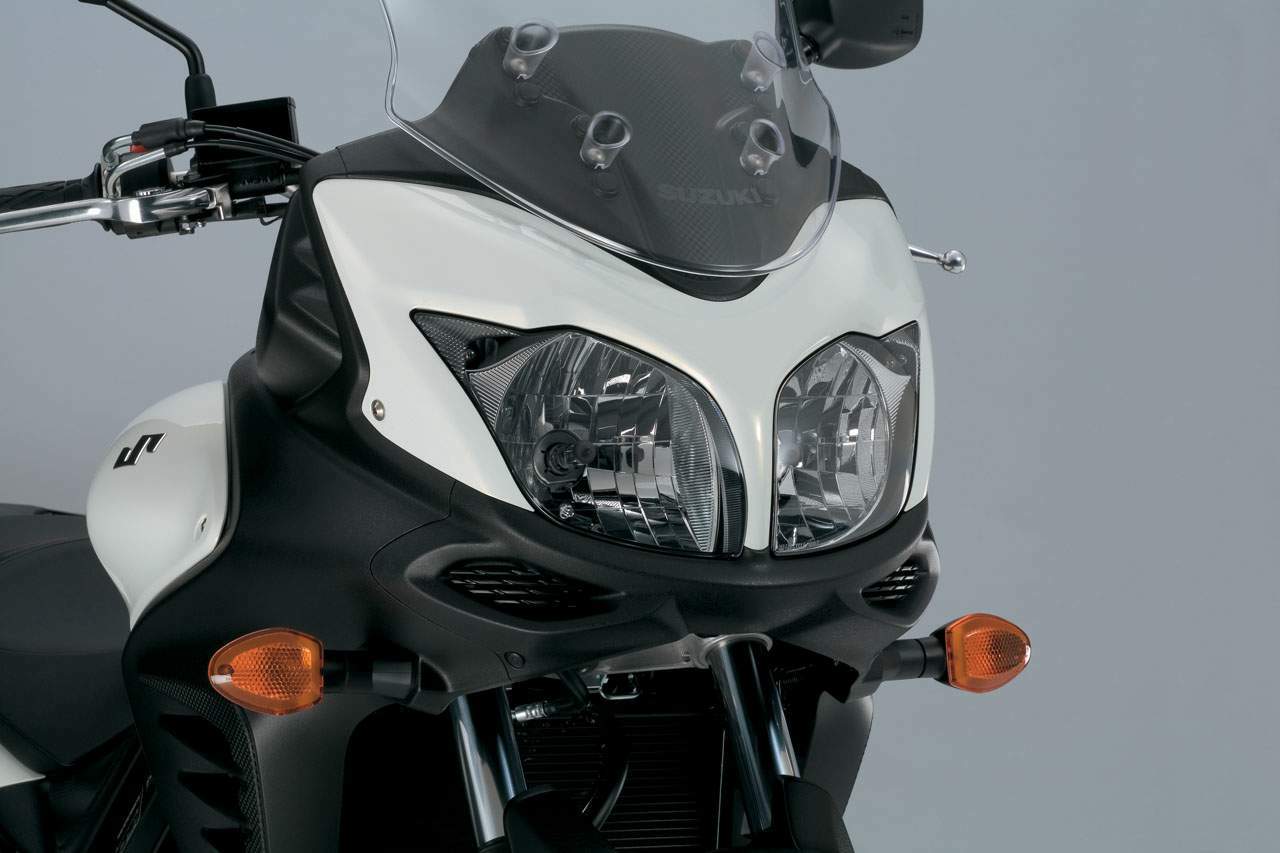

The sporty, dynamic front fairing houses compact dual multi-reflector headlight delivering superb light distribution.
Stylish and functional front air intakes and side air outlets contribute to both looks and rider comfort.
3-way height-adjustable windscreen, carefully shaped with extensive wind tunnel testing, efficiently reduces wind noise and rider fatigue.
Comfortable riding position composed with a well-shaped seat, slim 20-liter fuel tank and compactly tucked-in frame covers make the rider feel at one with the machine.
Functional seat, combining red-stitched leather-look sections and suede-look, slip-resistant surfaces, and topped with an embossed V-Strom logo
The upswept muffler, topped with a silver cover and a buffed-finish end cap is gracing the rear end
Lightweight resin luggage carrier comes with a slip-resistant rubber mat and is one piece with well-shaped, easy-to-grasp grab bars.

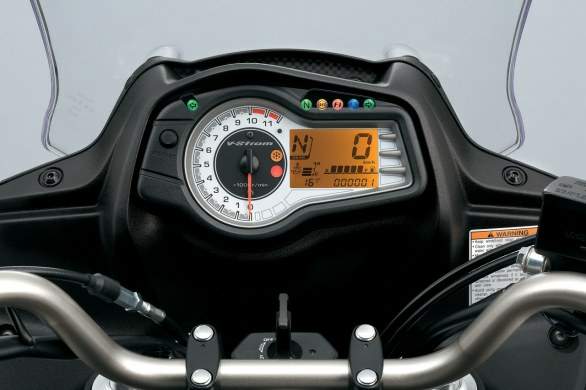

Instruments with an analog tachometer and brightness-adjustable LCD speedometer. LCD readouts include odometer, dual trip meter, gear position, coolant and ambient temperature, average fuel consumption, fuel gauge and clock.
Switching between LCD readings can be done with the left handlebar switch.
LED indicators include a road freeze warning indicator which, together with the ambient temperature display, helps riders' awareness of road conditions.
645 cc V-Twin engine features broad torque delivery, signature V-Twin power pulses and sporty quick-revving high rpm range power surges for a full-range riding enjoyment.
Efficient engine designs deliver high mileage and class-leading riding range.
Radiator with a more compact core, flanked by wind-directing plates shaped with holes* for enhancing cooling efficiency and allowing hot radiator air to flow out to the side air outlets and away from the rider's legs.(*Suzuki-patented design.)
The fuel injection system uses fine-atomization 10-hole fuel injectors for high combustion efficiency.
The 6-speed transmission is tailored for active sporty rides with tighter 1st through 5th gear ratios, while keeping highway cruises comfortable with a tall top gear.
A high-speed 32-bit ECU controls Suzuki Dual Throttle Valve (SDTV) system, contributing to enhanced low-to-mid rpm range torque, a linear throttle response and lower emissions.
Twin iridium spark plugs for each cylinder heighten the spark strength and combustion efficiency, contributing to increased power, a more linear throttle response, easier engine start-up and a more stable idle.
Suzuki-developed and patented Throttle-body Integrated Idle Speed Control (TI-ISC) contributes to easy cold starting, stable idle and lower emissions.
Lightweight and rigid twin-spar aluminum-alloy frame and swingarm contribute to smooth handling performance and well-poised running at high-speeds.
Spring-preload-adjustable 43mm-stanchion-tube front forks and link-type rear suspension with rebound stepless damping adjuster as well as a preload adjuster.
19-inch front and 17-inch rear radial tires specifically designed for the V-Strom 650 ABS.
Front dual 310mm-disc brakes and rear 260mm-disc brake deliver smooth, controllable stopping power. Expansion-resistant high-pressure brake hose enhances the responsive brake feel.
Antilock Brake System (ABS)* unit features a lightweight, compact design. The ABS monitors wheel speed, and matches stopping power to available traction.
Please note that ABS is a supplemental device for brake operation, not a device for shortening stopping distance. Always remember to reduce speed sufficiently before approaching curves and corners.
Transponder-type Suzuki Advanced Immobilizer System (SAIS) helps prevent theft with an electronic code ID system built into the owner's key.(excluding North American specifications)
A wide selection of Suzuki Genuine Accessories, designed for a smooth, easy fit with the V-Strom 650 ABS, adds to both adventure tourer profile and function.
Source globalsuzuki.coml
